Cast iron tactile plate – Corten finish
General Description
Tactile paving slab designed to alert visually impaired individuals to hazardous areas (e.g., platform edges, stairs, crossings).

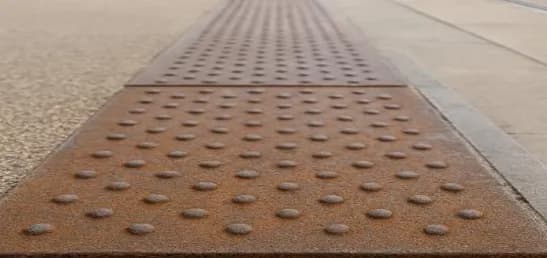

Visual aspect – Cast iron with a Corten-type patina effect
Designed in GL or GS cast iron, this plate combines robustness, longevity, and urban aesthetics thanks to a Corten-type stabilized rust effect surface treatment, with a protective varnish to fix the patina.
- Controlled oxidized finish: Surface intentionally oxidized for a natural rusted look, sealed with a clear satin varnish.
- Final appearance: Textured orange-brown material, soft and slightly rough, similar to Corten steel.
- Advantage: Urban aesthetic, without rust runoff.

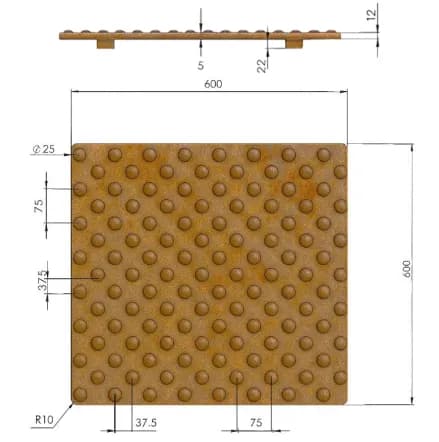

Technical specifications
- Dimensions: 600 mm x 600 mm
- Thickness: 12 mm
- Tactile surface: 5 mm domed relief according to French standard
- Edge radius: R10 for safety
- Tolerances: DCTG 11 according to ISO 8062-3:2007(F)
- Weight: 33.5 kg
Fixing – 4 anchor lugs
- Number: 4 (one at each corner)
- Function: Solid anchoring in concrete or resin
Usage & Accessibility
- Compliant with standards for the visually impaired
- Surface detectable by cane or foot
- Use: platforms, pedestrian crossings, public access buildings, etc.
Installation & Maintenance
- Installation: Chemical anchoring or suitable mortar
- Care: Gentle cleaning, non-abrasive
- Durability: +25 years outdoors
