Casting process

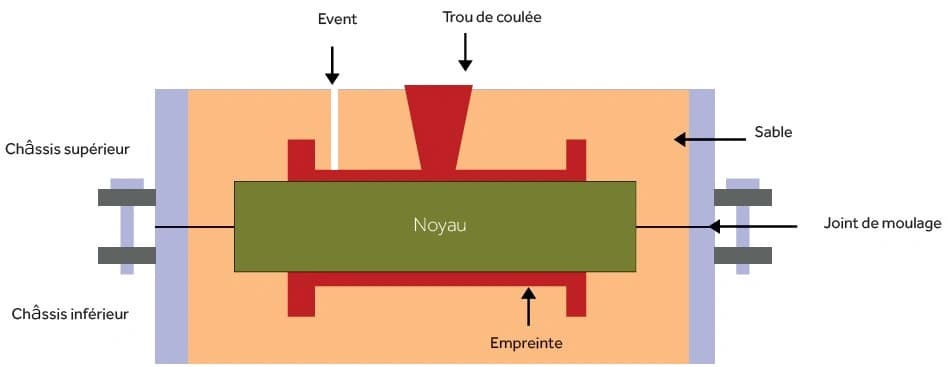

Sand molding
Sand casting consists of creating an impression in sand from a pattern shaped like the part. Two perfectly aligned metal flasks are used to hold the sand used to take the impression of the pattern.
Steps of the process

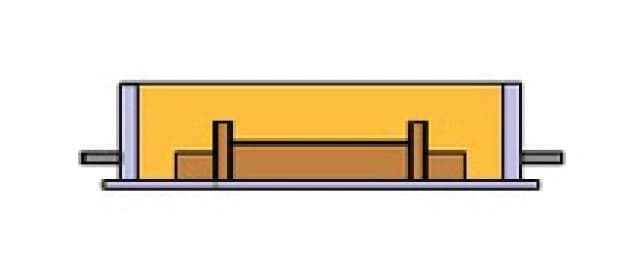

The moulder prepares the lower part of the mold, the half pattern is covered with sand.

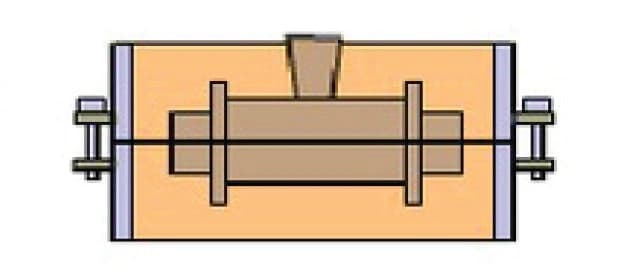

For the upper part of the mold, the founder positions the second part of the pattern on the first. He adds the sprue pattern and then fills the flask with sand.

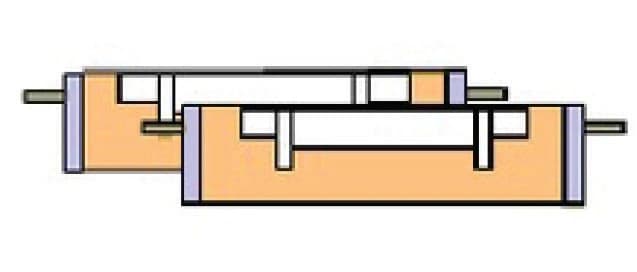

The caster then removes the half patterns, drills the vents, and touches up the impressions if necessary.

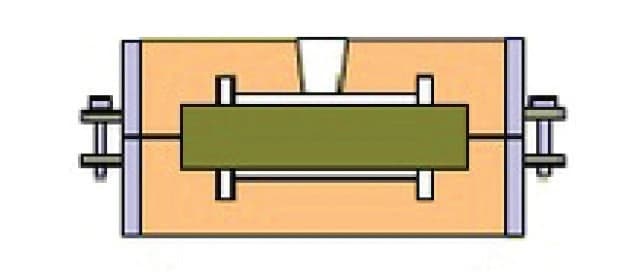

The core is placed on its prints, then the mold is closed.

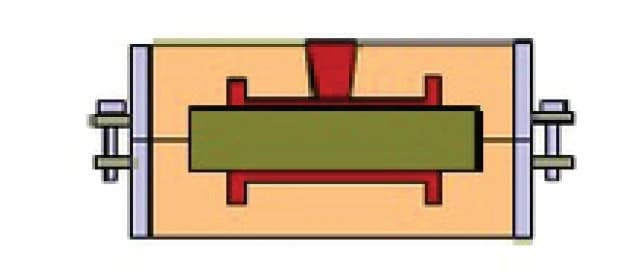

The caster then proceeds to pour the molten alloy into the mold.

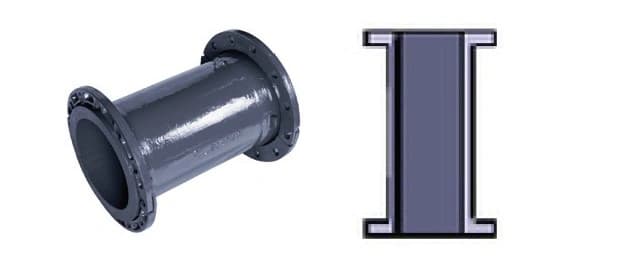

Once the casting has cooled, the sand mold is destroyed and the sand is processed. The part is separated by sawing from the gating system and risers. Grinding is then performed to remove any burrs. The raw casting is then ready for the machining of its functional surfaces.
